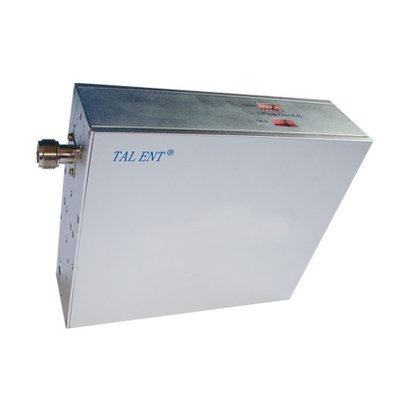

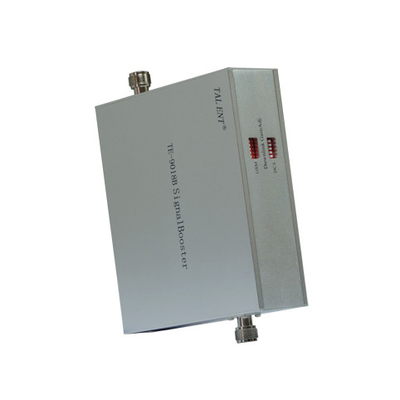

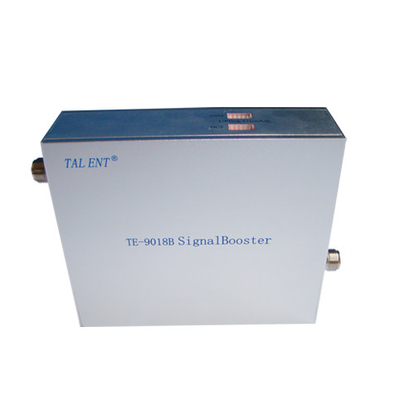

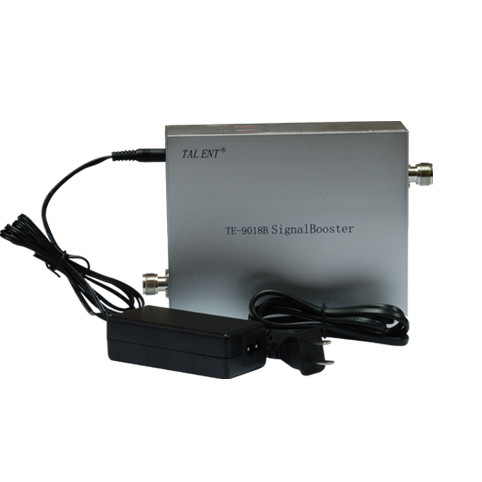

Compact House Mini Mobile Cellphone Signal Amplifier ETS300 609-4 Easy Installation

Compact House Mini Mobile Cellphone Signal Amplifier ETS300 609-4 Easy Installation

  • Compact House Mini Mobile Cellphone Signal Amplifier ETS300 609-4 Easy Installation
  • Compact House Mini Mobile Cellphone Signal Amplifier ETS300 609-4 Easy Installation
  • Compact House Mini Mobile Cellphone Signal Amplifier ETS300 609-4 Easy Installation
  • Compact House Mini Mobile Cellphone Signal Amplifier ETS300 609-4 Easy Installation
Compact House Mini Mobile Cellphone Signal Amplifier ETS300 609-4 Easy Installation
Product Details:
Place of Origin: China
Brand Name: DEZHEN
Certification: ROHS/CE/ISO 9000
Model Number: TE-903GB
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time: 3 working days
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Model: TE-9018B Product Name: Dual Band Signal Repeater/booster
Color: Silver Coverage Area: 800-1500 Sqm
RF Coaxial Connector: N-female
Highlight:

indoor mobile phone signal booster

,

cell phone signal booster repeater



Compact House Mini Mobile Cellphone Signal Amplifier ETS300 609-4


Description:

1. Provide quick coverage solution for small signal weak & block zones.
2. Compact size, low consumption, easy installation, great cover.
3. Cover about 500~1000 sq.m without block or obstruct.
4. High linear design, low interference to BTS.
5. Manual gain control function.

Specifications:



Model





TE-9018A



TE-9018B

TE-9018C

Frequency range

Uplink     890-915MHz/ 1710-1785MHz

Downlink  935-960MHz / 1805-1880MHz

Gain

(dB)

Uplink

GSM Gp≥55;

DCS Gp≥50;

GSM Gp≥65;

DCS Gp≥55;

GSM Gp≥45;

DCS Gp≥50;

Downlink

GSM  Gp≥60;

DCS Gp≥55;

GSM  Gp≥70;

DCS Gp≥60;

GSM Gp≥40;

DCS Gp≥50;

Gain adjustable

MGC≥30dB

Output power

≥20dBm

≥20dBm

≥20dBm

Pass band ripple

≤10dB

I/O impedance

50Ω/N Connector

I/O return loss

≤-8dB

Noise figure

≤-8dB

Intermodulation attenuation

(Po=13dBm)





≤-40dBc

Transmission

≤0.5μs

Ambient

-10℃~50℃

Power supply

AC110~240V±10%   45~55Hz

Reliability

To the GB6993-86 standard

Electromagnetic

To the ETS300 694-4 standard

Function

a) Power supply LED denote

 b) Export power LED denote

RF Connector

N-Female

Size

228mm×106mm×33mm

Weight

< 2Kg










































Competitive Advantage:

1. High system gains
2. Full duplex and double-end design, external power supply, and convenient installation
3. ALC technology with auto-steady function adopted.
4. Provide power indication and uplink and downlink indications.
5. With the amplified linear power, the intermodulation and spuriousness are suppressed effectively.
6. The electromagnetic compatibility conforms to ETS300 609-4 standards.
7. The electromagnetic compatibility conforms to ETS300 609-4 standards.

Applications:


Our mobile signal booster(mini repeater) is specially designed for the blind zones of offices, family rooms, factories, bars, supermarkets, underground parking garage,etc, where the signal is very poor, or in spite of full mobile signals on the mobile phone, there is a break in voice leading to call clarity problem. Simply place the mobile phone booster in such places, you'll be astonished with the huge gain in both the incoming reception and outgoing transmission levels as the mobile signal booster goes to work!
