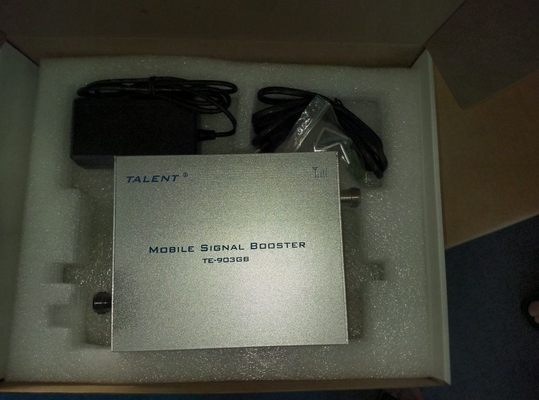

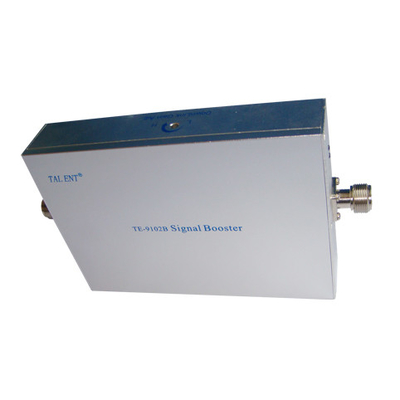

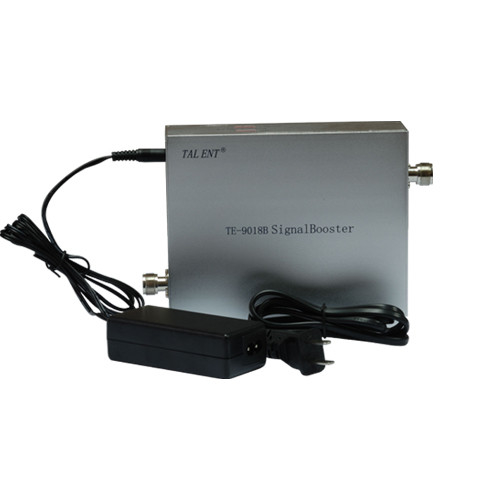

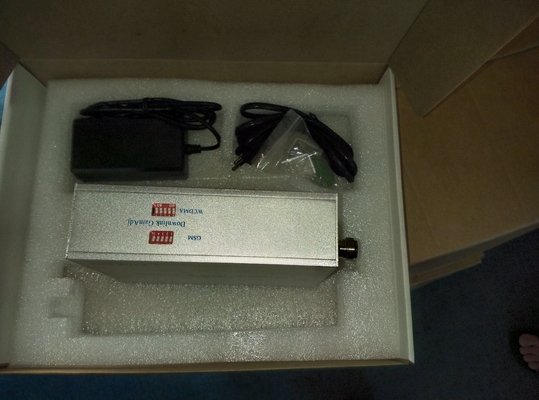

Home / Office Mobile Phone Dual Band Repeater 800/2100MHZ High Linear Design

Home / Office Mobile Phone Dual Band Repeater 800/2100MHZ High Linear Design

  • Home / Office Mobile Phone Dual Band Repeater 800/2100MHZ High Linear Design
  • Home / Office Mobile Phone Dual Band Repeater 800/2100MHZ High Linear Design
  • Home / Office Mobile Phone Dual Band Repeater 800/2100MHZ High Linear Design
  • Home / Office Mobile Phone Dual Band Repeater 800/2100MHZ High Linear Design
Home / Office Mobile Phone Dual Band Repeater 800/2100MHZ High Linear Design
Product Details:
Place of Origin: China
Brand Name: DEZHEN
Certification: ROHS/CE/ISO 9000
Model Number: TE-8019B
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time: 3 working days
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Model: TE-8019B Product Name: Dual Band Signal Repeater/booster
Color: Siver Coverage Area: 800-1500 Sqm
High Light:

mobile phone signal repeater

,

cell phone signal booster repeater

800 MHZ / 2100MHZ dual band Repeater / Amplifier with wide coverage,CMDA / 3G​


Description:

1. Provide quick coverage solution for small signal weak & block zones.
2. Compact size, low consumption, easy installation, great cover.
3. Cover about 500~1000 sq.m without block or obstruct.
4. High linear design, low interference to BTS.
5. Manual gain control function.

Specifications:

 TE-803GC, CDMA& 3G Dual Band Signal Booster, Technical specifications



Specification TE-803GA TE-803GB TE-803GC
Frequency range Uplink CDMA 825-835/3G1920-1980(MHz)
Downlink CDMA 870-880/3G2100-2170(MHz)
Gain
(dB)
GSM Uplink Gp≥ 55 Gp≥ 65 Gp≥ 45
GSM Downlink Gp≥ 60 Gp≥ 70 Gp≥ 50
DCS Uplink Gp≥ 50 Gp≥ 55 Gp≥ 45
DCS Downlink Gp≥ 55 Gp≥ 60 Gp≥ 50
Gain adjustable range MGC≥ 30dB
Output power(dBm) ≥ 17 ≥ 20 ≥ 17
Pass band ripple GSM ≤ 4dB
DCS ≤ 15dB

Guard band rejection
GSM (BW-60dB)≤ 42 MHz (BW-70dB)≤ 45 MHz
DCS (BW-60dB)≤ 104MHz (BW-70dB)≤ 107 MHz
I/O impedance 50Ω /N Connector
I/O return loss ≤ -10dB
Noise figure ≤ -8dB
Intermodulation attenuation
(Po=13dBm)

≤ -40dBc
Transmission Delay ≤ 0.5μ s
Ambient temperature -10℃~50℃
Power supply AC110~220V± 10% 45~55Hz
Size 148mm× 106mm× 33mm
Reliability To the GB6993-86 standard
Electromagnetic compatibility To the ETS300 694-4 standard
Function a) Power supply LED denote
b) Export power LED denote







Competitive Advantage:

1. High system gains
2. Full duplex and double-end design, external power supply, and convenient installation
3. ALC technology with auto-steady function adopted.
4. Provide power indication and uplink and downlink indications.
5. With the amplified linear power, the intermodulation and spuriousness are suppressed effectively.
6. The electromagnetic compatibility conforms to ETS300 609-4 standards.
7. The electromagnetic compatibility conforms to ETS300 609-4 standards.

Applications:


Our mobile signal booster(mini repeater) is specially designed for the blind zones of offices, family rooms, factories, bars, supermarkets, underground parking garage,etc, where the signal is very poor, or in spite of full mobile signals on the mobile phone, there is a break in voice leading to call clarity problem. Simply place the mobile phone booster in such places, you'll be astonished with the huge gain in both the incoming reception and outgoing transmission levels as the mobile signal booster goes to work!
