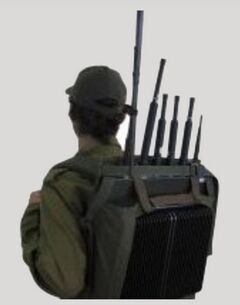

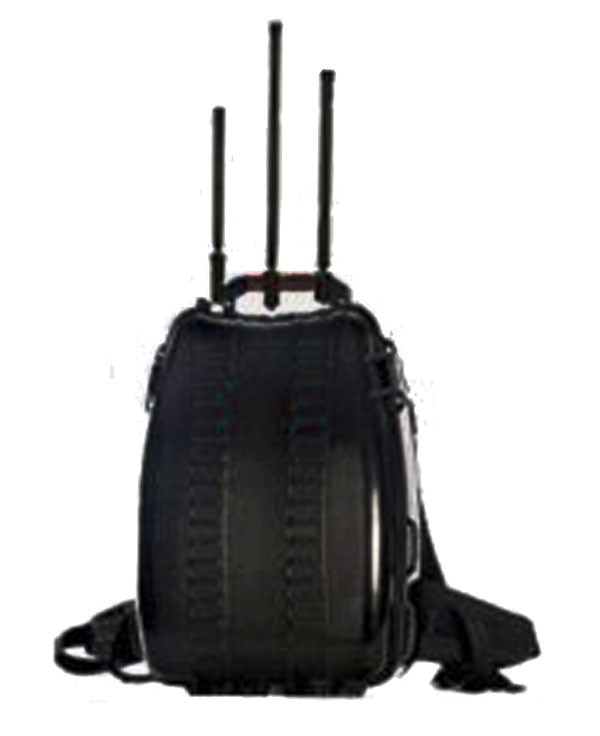

Manpack Mobile Signal Jammer Device , RF Frequency Jammer Signal Blocker 75w

Manpack Mobile Signal Jammer Device , RF Frequency Jammer Signal Blocker 75w

  • Manpack Mobile Signal Jammer Device , RF Frequency Jammer Signal Blocker 75w
  • Manpack Mobile Signal Jammer Device , RF Frequency Jammer Signal Blocker 75w
  • Manpack Mobile Signal Jammer Device , RF Frequency Jammer Signal Blocker 75w
Manpack Mobile Signal Jammer Device , RF Frequency Jammer Signal Blocker 75w
Product Details:
Place of Origin: China
Brand Name: DEZHEN
Certification: ROHS/FCC/ISO 9000
Model Number: DZ-101L-75W
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after received your payment
Payment Terms: T/T
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Power Consumption:: 200w RF Power: 75w
Jamming Range: 30-200m Output Band:: GSM,DCS,3G,LTE,WIMAX,4G
High Light:

handheld cell phone jammer

,

portable cell phone signal jammer



manpack  mobile  phone signal Jammer, for Prisons / Military/ patrol,total 75w



Description:



This is a portable type mobile phone signal shielding device .It is  easy to carry, flexible to use, also with optional built-in high capacity battery , so it especially suitable for application in: large venue, infantry troop and military security force, the SWAT team, counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.



Functional characteristics:

       1. High RF power, shielding all 2G, 3G, 4G signals, frequencies can be customized by customers.

       2. it can with multiple power supplies :if with built-in battery, it can provide power for the jammer                      working about 2 hours. Also it can be powered by 220V AC or an on-board power supply.

       3. Efficient cooling heat dissipation system ,including high performance aluminum alloy heat sink and              several wind fans, so the jammer can non-stopped work for long time.

       4. this jammer can be customized as 3 or 4 0r 5 or 6 bands ,and each band could be 10 watts or                            15 watts as customer’s  request.



Specifications:



Output interface

Shield band of frequency

RF output power

Output power/channel

CH1

851-894 MHz

15w

17 dBm/30KHz(min)

CH2

1805-1880 MHz

15w

14 dBm/30KHz(min)

CH3

2110-2170 MHz

15w

15.5 dBm/30KHz(min)

CH4

2100-2170 MHZ

15w

15.5 dBm/30KHz(min)

CH5

925-960 MHz

15w

17.5 dBm/30KHz(min)

Power supply: AC110-220V Shielding area: 30-500M @ according to signal density of mobile network

Power consumption: 200W  Weight:12Kg  Size(length × wind × high):390×390×240mm

Humidity: 30%-95%                   Running Temperature: -20 to +55 Celsius Degree









Competitive Advantage:



  1.   Easy of mobility, can be carried like a trolley.

  2.   High Power RF amplifiers with VSWR and temperature self-protection technology.
  3.   with good cooling system, can operate for long time.
  4.   Using digital interference technology, overall effective suppression of target spectrum
  5.    independent module design. Each module can separate switch,disassemble. So it is                 convenient for maintenance and update.
  6.  Perfect Alarm System, fully protected circuit in case of disconnection of antennas.





Applications:



large venue, infantry troop and military security force, the SWAT team,

counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.
