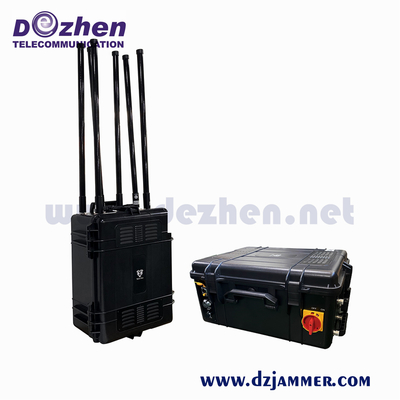

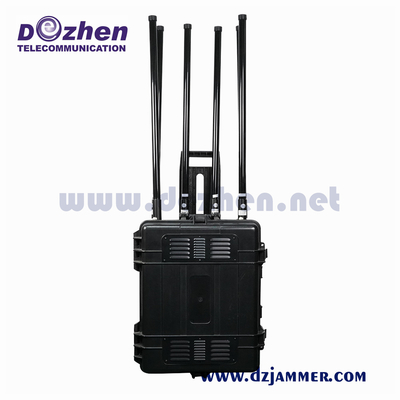

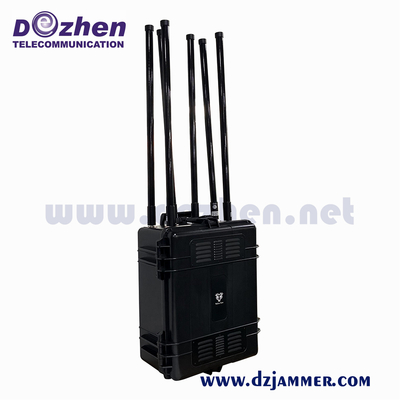

Backpack Portable Cell Phone Jammer , 80W 150M Wifi Jamming Device Light Weight

Backpack Portable Cell Phone Jammer , 80W 150M Wifi Jamming Device Light Weight

  • Backpack Portable Cell Phone Jammer , 80W 150M Wifi Jamming Device Light Weight
  • Backpack Portable Cell Phone Jammer , 80W 150M Wifi Jamming Device Light Weight
  • Backpack Portable Cell Phone Jammer , 80W 150M Wifi Jamming Device Light Weight
  • Backpack Portable Cell Phone Jammer , 80W 150M Wifi Jamming Device Light Weight
Backpack Portable Cell Phone Jammer , 80W 150M Wifi Jamming Device Light Weight
Product Details:
Place of Origin: China
Brand Name: DEZHEN
Certification: CE
Model Number: DZ- WT600161
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiated Price
Packaging Details: carton or wooden case
Delivery Time: 25 days
Payment Terms: L/C, T/T
Supply Ability: 100pieces/month
Contact Now
Detailed Product Description
Jamming Range: 50-180 Meters Type: Backpack Jammer
Antennae Type: External High Gain Omni Directional Antenna Application Area: Military Units, Prison,
Output Power: 5-80 Watt Antenna Parameters: Omni Antennas,gain:4~5dBi
Equipment Chassis: Metallic Paint
High Light:

Waterproof Backpack UAV Jammer

,

GPS Cellular Signal Blocker

Backpack Phone Signal Blocker Jammer 150M High Power Manually Switch Control



Product Description



1,High Power Freqeuncy Scan Convoy Jamming System, implementing the most effective and reliable RF jammer technology and equipped with a fully-integrated broadband jamming system. This is highly portable and light weight. Easy for backpack.

2,It plays an important role to use the heavily loaded vehicle and backpack type devices in some extreme hard situation.The operator can carry it forward through the hills and muddy road, as well as Climbing steep mounts and stairs avoid casualties and improve the combat efficiency.

3,This is full manpack multi band Jamming system is designed with a ruggedized case, light weight, highly mobility and reliance. This device is configured with 6 different jamming modules, the jamming frequency can be more than 8 Bands. Jamming frequency module can be up to 80 watt output power maximum.

4,It is especially easy to install and operate: simply attach the selected antennas and activate the desired frequency bands. The general design of the system meets military requirements as well as international quality standards and requirements. Our industrial in-house quality management system guarantees highest quality standards in terms of performance, reliable and long-life cycles.

5,Based on our general design, we can further customize our systems to client-specified scenarios both for military and civil applications in order to provide the best individual solution.


Features:


1. High-power Manpack multi-band RF signal jammer.



2. Modular construction for easy maintenance, repair and upgrade.



3. Jam up to four different jamming modules.



4. Max 220 watt total RF output power.



5. High portable, back pack type.



6. Internal battery, AC mains or DC power.



7. External LCD display to indicate the battery level.



8. Systematic Smart Cooling System.



9. The general design of the system meets military requirements.



Specifications:



Output Interface

Output Frequency

CH1

-CDMA: 851-960MHz /-GSM: 925-960MHz

CH2

-DCS: 1805-1880MHz

CH3

-PCS: 192-1990MHz

CH4

-3G: 2110-2170MHz

CH5

-4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU)

CH6

-4G LTE: 725-770MHz(US) or 790-826MHz(EU)

Jammed Signal Freqency:

CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF....

Type:

Backpack jammer

Output Channel:

6 output channels

Power Consumption:

Max: 220W

Output power:

80watt

Parameter Shielding Range:

Radius 50-150 meters (-75dBm,depending on the distance of base station in an open filed)

Jammer Module Number

6

HS Code:

8543709200

Packing:

Box

Dimension (not including antennae):

30 *45 *15cm

Technical Parameters:

Net Weight

20kg

Total Weight

25kg Aviation Case included

Ambient Temperature

-10ºC - +50ºC

Relative Humidity

≤80%

Power Consumption

≤360W

Power Input

AC100~240V,DC24V

Battery

24V,30AH,Built-in standby battery

can used for 90~180 minutes

Antenna Parameters

Omni antennas,gain:4~5dBi

Switch Control

Manually

Equipment Chassis

Metallic Paint

Cooling system

Active "smart" with integrated incoming air filter

Antennae type:

External high gain Omni directional Antenna



We could supply customized service by your detail requirements about frequencies setting. 4-8



Frequency modules we can mix very flexibly.Frequency Ranges Selectable:



CDMA 800: 851-894MHz
GSM 900: 925-960MHz
DCS 1800: 1800-1880MHz
PHS 1900: 1920-1990MHz
3G 2100(UMTS): 2110-2170MHz
WIFI 2.4G Bluetooth: 2400-2500MHz
WiFi3.6G: 3500-3600MHz
Wi-Fi5.2G: 5100-5500MHz
WIFI 5.8G 5725-5850MHz
4G/LTE 700M: 725-770MHz(US)
4G/LTE 800M: 790-826MHz(EU)
4G Wimax: 2300-2400MHz(US)
4G Wimax: 2620-2690MHz(EU)
GPS/L1: 1500-1600MHz
GPS/L2: 1200-1300MHz
GPS/L3: 1300-1400MHz
GPS/L4: 1100-1200MHz
VHF: 135-174MHz
UHF: 400-470MHz
Lojack: 167-175MHz
RF315: 315MHz
RF433: 433MHz
RF868: 868MHz


Application:

Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...

R&D Group in USA

We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.

Manufacturer in CHINA

A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.

We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.

Terms and conditions:


Delivery Time Schedule Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc.
Terms of Delivery FOB HONGKONG/ USA.
Warranty 36 months.
Software Updates Free software updates will be provided for a period of 36 months.
Extended Warranty After 4th Year :5% of total for each years.
