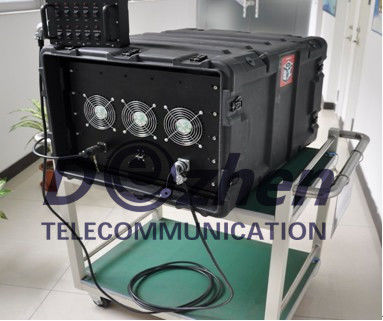

Internal Battery Cell Phone 330W RF Bomb Jammer DDS convoy jamming system

Internal Battery Cell Phone 330W RF Bomb Jammer DDS convoy jamming system

  • Internal Battery Cell Phone 330W RF Bomb Jammer DDS convoy jamming system
  • Internal Battery Cell Phone 330W RF Bomb Jammer DDS convoy jamming system
  • Internal Battery Cell Phone 330W RF Bomb Jammer DDS convoy jamming system
  • Internal Battery Cell Phone 330W RF Bomb Jammer DDS convoy jamming system
Internal Battery Cell Phone 330W RF Bomb Jammer DDS convoy jamming system
Product Details:
Place of Origin: China
Brand Name: DEZHEN
Certification: CE,FCC
Model Number: WT700202
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiated Price
Packaging Details: regular packaging
Delivery Time: 3-4 weeks
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 2000 pcs per years
Contact Now
Detailed Product Description
Type: Bomb Jammer Antenna Type Options: Directional Or Omnidirectional Antennas Option
Special Technology: Prevent Interference Between Each Frequency Band Dimension: 64.0×54.0×55.0 Cm
Weight: 75 Kilogram Total Output Power: 600~1200W
Packing: Neutral Packing
High Light:

RF Cellular Signal Jammer

,

330W Cell Phone Blocking Device

Military Portable RF Signal Bomb Jammer Cell Phone Signal Jammer With



DDS Convoy Jamming System



Product description :



This device is not only bomb jammers, but also high power portable DDS convoy jamming system, portable RF jammer,portable vehicle bomb jammer. This jammer can implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.



It can cove all RF communication Frequencies between 20MHz to 3600MHz continuously and simultaneously.



Features:



1. High-power portable multi-band jammer.



2. Field programmability for rapid adjustment frequence with output Watt.



3. Modular construction for easy maintenance,repair and upgrade.



4. Jammer up to five different jamming modules simultaneously,and cover up to 10 different frequency bands.



5. Each module with LED display to show its working frequency ,output power and etc.



6. 250-300 watt total RF output power.



7. Equipped with a remote control unit. The operator can ON/OFF each module through the wired remotecontroller.



8. Fully portable trolley-type case.



9. Internal battery, AC mains or DC power.





Technical Specifications:



11 bands for option: The frequencies can be from 20-6000MHZ



Output Interface Frequency Range Out Power RF Output dBm
CH1 20-108MHz Wireless ,FM Radio 100W
CH2 135-174MHz Wilkie-talkie(VHF) 100W
CH3 300-400MHz Remote Control, Drone 100W
CH4 400-470MHz Wilkie-talkie(UHF),Car alarm 100W
CH5 851-894MHz CDMA 100W
CH6 925-960MHz GSM 100W
CH7 1570-1580MHz GPSL1 50W
CH8 1805-1920MHz DCS,PCS 100W
CH9 2110-2170MHz WCDMA 50W
CH10 2400-2485MHz WIFI,Drone,Bluetooth 50W
CH11 5725-5850MHz WIFI,Drone 15W
Jamming Radius: 50-800M, the jamming radius still depends on the strength signal in given area
HS Code: 8543709200
Total output power: 600~1200W
Power Consumption: 330W
Type: Vehicle Jammer
Dimension: 640×540×550 mm
Packing: Neutral Packing
Signal Jammer for: 20 - 6000MHz Cell Phone Signal Jammer
Power supply: AC110 240V
Weight: 75 Kg
Humidity: 5%-95%
Working Temp: -20℃ to +55℃



RF Characteristics:

RF Characteristics Description
Output Power 915 Watts
Internal Modulation FM Hopping Frequency
Signal Source VCO Synthesized
Power Supply AC110-240V,24V or 48V DC
Modules Per Unit 11
Contol ON/OFF with Switch
Monitoring Adjusted output power by DIP switch
Antenna External- Omni-directional for 360°
Power Amplifier Protectors Full VSWR Protector
Operating Hours Unlimited



Terms and conditions:



Delivery Time Schedule Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms 40% advance, 40% after one month,20% before shipping.
Terms of Delivery FOB HONGKONG/ USA.
Warranty 36 months.
Software Updates Free software updates will be provided for a period of 36 months.
Extended Warranty After 4th Year : 5% of total for each years.

Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.

Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .

Internal Battery Cell Phone 330W RF Bomb Jammer DDS convoy jamming system 0

Manufacturer in CHINA

A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.

We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
