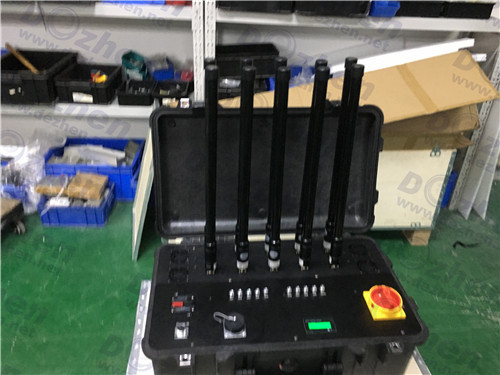

AC 110 240V 330W GSM Portable Vehicle Jamming Device wifi signal jammer

AC 110 240V 330W GSM Portable Vehicle Jamming Device wifi signal jammer

  • AC 110 240V 330W GSM Portable Vehicle Jamming Device wifi signal jammer
  • AC 110 240V 330W GSM Portable Vehicle Jamming Device wifi signal jammer
  • AC 110 240V 330W GSM Portable Vehicle Jamming Device wifi signal jammer
  • AC 110 240V 330W GSM Portable Vehicle Jamming Device wifi signal jammer
AC 110 240V 330W GSM Portable Vehicle Jamming Device wifi signal jammer
Product Details:
Place of Origin: China
Brand Name: DEZHEN
Certification: CE,FCC
Model Number: DZ-WT700188
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiated Price
Packaging Details: carton or wooden case
Delivery Time: 3-4 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per years
Contact Now
Detailed Product Description
Type: Bomb Jammer Jamming Area: 50-800 Meters
Signal Jammer For: 20 - 6000MHz Cell Phone Signal Jammer Working Time: 24 Hours/365days Continuously
Antenna Type Options: Directional Or Omnidirectional Antennas Option Special Technology: Prevent Interference Between Each Frequency Band
Dimension: 640×540×550 Mm Weight: 75 Kg
High Light:

330W Bomb Signal Jammer

,

GSM Signal Jamming Device

330W AC 110 240V Bomb Signal Jammer Cell Phone Portable Vehicle Jamming Device



Product description :

This a big advantage of this high power phone jammer is that each band can work separately and you can adjust the power according to the real needs. Since designed with the built-in intelligent modules, such as connection cables, this high power phone jammer owns the functions of power outage alarm automatically, Automatic Switcher, remote inspection, and comprehensive intelligent digital control and do not have interference to other kinds of devices.



Features:

1. High-power portable multi-band jammer.
2. Field programmability for rapid adjustment frequence with output Watt.
3. Modular construction for easy maintenance,repair and upgrade.
4. 250-300 watt total RF output power.
5. Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.
6. External LED display to indicate the batterylevel.
7. Designed with external backup battery input, adapted to external battery. Facilitating to change the battery timely for field use.



Technical Specifications:

11 bands for option: The frequencies can be from 20-6000MHZ

Output Interface Frequency Range Out Power RF Output dBm
CH1 20-108MHz Wireless ,FM Radio 100W
CH2 135-174MHz Wilkie-talkie(VHF) 100W
CH3 300-400MHz Remote Control, Drone 100W
CH4 400-470MHz Wilkie-talkie(UHF),Car alarm 100W
CH5 851-894MHz CDMA 100W
CH6 925-960MHz GSM 100W
CH7 1570-1580MHz GPSL1 50W
CH8 1805-1920MHz DCS,PCS 100W
CH9 2110-2170MHz WCDMA 50W
CH10 2400-2485MHz WIFI,Drone,Bluetooth 50W
CH11 5725-5850MHz WIFI,Drone 15W
Jamming Radius: 50-800M, the jamming radius still depends on the strength signal in given area
HS Code: 8543709200
Total output power: 600~1200W
Power Consumption: 330W
Type: Vehicle Jammer
Dimension: 640×540×550 mm
Packing: Neutral Packing
Signal Jammer for: 20 - 6000MHz Cell Phone Signal Jammer
Power supply: AC110 240V
Weight: 75 Kg
Humidity: 5%-95%
Working Temp: -20℃ to +55℃



RF Characteristics:

RF Characteristics Description
Output Power 915 Watts
Internal Modulation FM Hopping Frequency
Signal Source VCO Synthesized
Power Supply AC110-240V,24V or 48V DC
Modules Per Unit 11
Contol ON/OFF with Switch
Monitoring Adjusted output power by DIP switch
Antenna External- Omni-directional for 360°
Power Amplifier Protectors Full VSWR Protector
Operating Hours Unlimited



Applicable Area:

• Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations, detention centers, interrogation rooms, courts,



• All kinds of military sites and other prohibited places to use mobile phones.



Terms and conditions:

Delivery Time Schedule Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms 40% advance, 40% after one month,20% before shipping.
Terms of Delivery FOB HONGKONG/ USA.
Warranty 36 months.
Software Updates Free software updates will be provided for a period of 36 months.
Extended Warranty After 4th Year : 5% of total for each years.
