Mini Antenna Mobile Phone Signal Booster GSM With N Female Connector

Product Details:

Place of Origin:	China
Brand Name:	DEZHEN
Certification:	ROHS/CE/ISO 9000
Model Number:	TE-9102A

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	negotiation
Packaging Details:	Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time:	3 working days
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Model:	TE-9102A	Product Name:	Cell Phone Signal Repeater/booster
Color:	Silver	Coverage Area:	500-800 Sqm
RF Coaxial Connector:	N -Female Connector
High Light:	cellular signal booster , gsm signal repeater

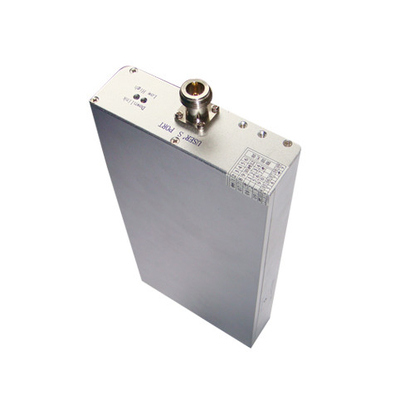

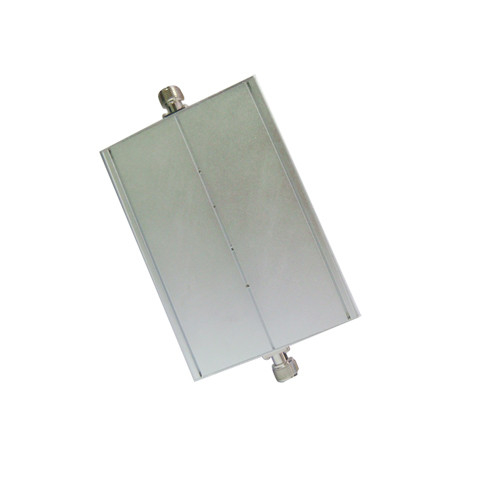

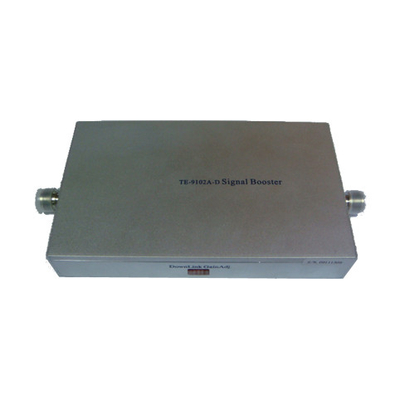

Mini Antenna Mobile Phone Signal Booster GSM With N Female Connector

1. Provide quick coverage solution for small signal weak & block zones.
2. Compact size, low consumption, easy installation, great cover.
3. Cover about 500~1000 sq.m without block or obstruct.
4. High linear design, low interference to BTS.
5. Manual gain control function.

Specifications:

Model		TE-9102A	TE-9102B	TE-9102C
Frequency range		Uplink 890-915MHz
		Downlink 935-960MHz
Model		TE-9102A-C	TE-9102B-C	TE-9102C-C
Frequency range		Uplink 824-849MHz
		Downlink 869-894MHz
Model		TE-9102A-i	TE-9102B-i		TE-9102C-i
Frequency range		Uplink 806-824MHz
		Downlink 851-869MHz
Gain (dB)	Uplink	Gp≥55	Gp≥65	Gp≥45
	Downlink	Gp≥60	Gp≥70	Gp≥50
Gain adjustable(only B/B-C/B-i )		MGC≥30dB
Output power		≥20dBm	≥23dBm	≥20dBm
Pass band ripple		≤5dB
I/O impedance		50Ω/N Connector
I/O return loss		≤-8dB
Noise figure		≤-8dB
Intermodulation attenuation(Po=13dBm)		≤-40dBc
Transmission		≤0.5μs
Ambient		-10℃～50℃
Power supply		AC110～240V±10% 45～55Hz
Reliability		To the GB6993-86 standard
Electromagnetic		To the ETS300 694-4 standard
Function		a) Power supply LED enote b) Export power LED enote
RF Connector		N-Female
Size		184mm×107mm×33mm
Size(TE-9102B/B-C/B-i)		190mm×107mm×33mm
Weight		< 1.2Kg

Competitive Advantage:

1. High system gains
2. Full duplex and double-end design, external power supply, and convenient installation
3. ALC technology with auto-steady function adopted.
4. Provide power indication and uplink and downlink indications.
5. With the amplified linear power, the intermodulation and spuriousness are suppressed effectively.
6. The electromagnetic compatibility conforms to ETS300 609-4 standards.
7. The electromagnetic compatibility conforms to ETS300 609-4 standards.

Applications:

Our mobile signal booster(mini repeater) is specially designed for the blind zones of offices, family rooms, factories, bars, supermarkets, underground parking garage,etc, where the signal is very poor, or in spite of full mobile signals on the mobile phone, there is a break in voice leading to call clarity problem. Simply place the mobile phone booster in such places, you'll be astonished with the huge gain in both the incoming reception and outgoing transmission levels as the mobile signal booster goes to work!
