Shenzhen Dezhen Telecommunication Technology Co.,Ltd
professional manufacturer of mobile signal jammer ,high power jammer and min signal booster!
 |
| Place of Origin: | China |
| Brand Name: | DEZHEN |
| Certification: | CE.FCC. |
| Model Number: | DZ-WT900138 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | negotiated price |
| Packaging Details: | carton or wooden case |
| Delivery Time: | 3-10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 pcs per years |
| Weight Of Product: | 25kg | Total Output Power: | 180W |
|---|---|---|---|
| Dimensions: | 530 X 300x 200mm Not Include Antennas | Signal Jammer For: | 180W 6 Bands High Power Drone Jammer |
| Frequency Range: | 2.4G,5.8G,GPSL1,WiFi3.6G,433 | Antenna Type: | Directional Antenna Or Omini-directional Antenna |
| Jamming Range: | 50-1000m | HS Code: | 8543709200 |
| Highlight: | 180W Drone Frequency Jammer,180W Drone Communication Jammer |
||

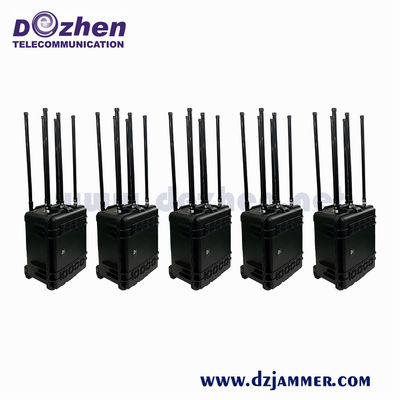

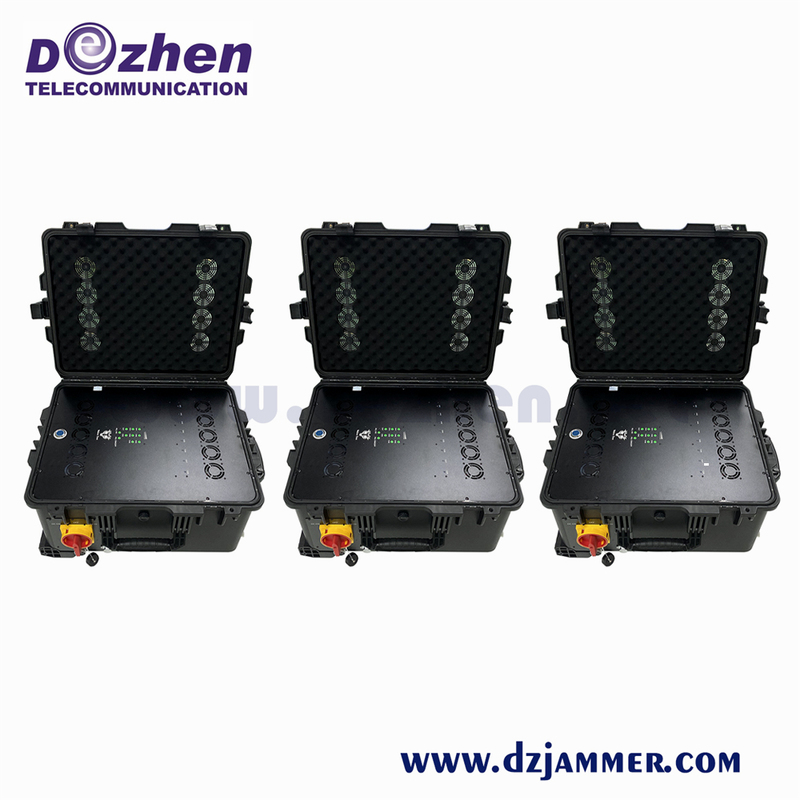

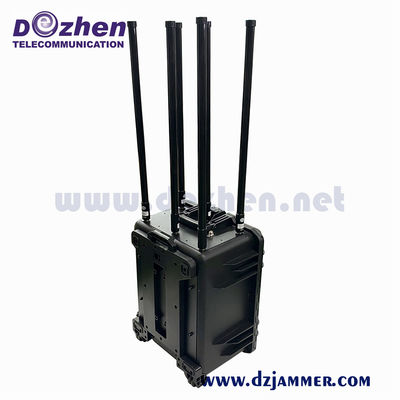

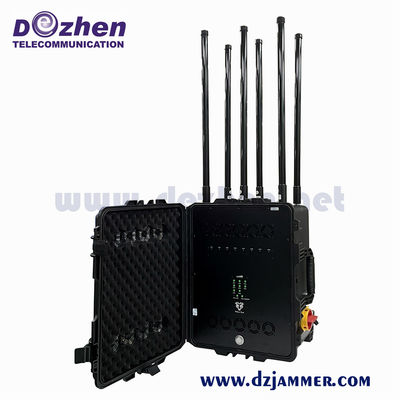

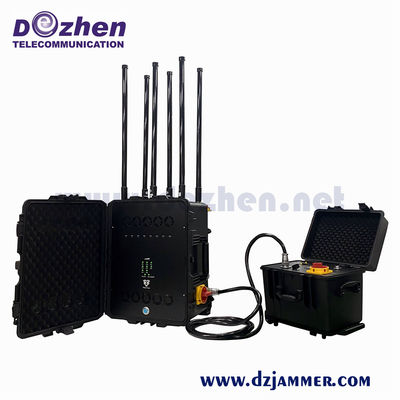

Drone Communication Jammer 180W 6 Bands High Power ,Durable Drone Signal Blocker
1. Applicable place:
Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug unit...etc.
2. Product Description
Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effectivejamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide se curity protection and
ensure the safety of VVIPs.
The Jammer is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs. Jamming radius of this Jammer depends on several conditions such as transmitter frequency and output power, distance to receiver,and obstacles between, etc.
3.Features:
1.Over Temperature and VSWR Protection
2.Status/Alarm LEDs
3.Fan Cooled Rack Enclosure with Casters
4.100-240VAC Power Supply Source
5.Optional Status Monitoring Software for Client PC
4. Specifications
| Output Interface | Output Frequency |
| CH1 | 2.4G: 2400-2500MHz |
| CH2 | 5.8G: 5725-5850MHz |
| CH3 | GPSL1: 1560-1620MHz |
| CH4 | 868-920: 868-916MHz |
| CH5 | WiFi3.6G: 3500-3600MHz |
| CH6 | 433: 433 MHz |
| Jamming range: | 50-1000m(under Signal level ≤-85dBm)@according to the signal density mobile network |
| HS Code: | 8543709200 |
| Dimensions Of Device: | 530 x 300x 200mm not include antennas |
| Weight Of Product: | 25kg |
| Type: | Drone jammer |
| Total output power: | 180W |
| Packing: | Neutral Packing |
| Signal Jammer for: | 180W 6 bands High Power Drone jammer |
| Power Supply: | AC adapter (50 to 60Hz/100 to 240V AC -DC27V) |
| Antenna Type: | Directional Antenna or Omini-directional antenna |
| Operating Temp : | -20 to +50ºC |
| Storage Temp: | -40 to +60ºC |
| Humidity : | 5%-80% |
We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
5.Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
