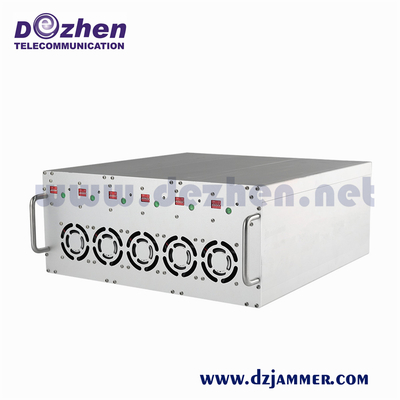

8 Frequencies High Power Signal Jammer Range 50 - 200 Meters 20kg Weight

    • 8 Frequencies High Power Signal Jammer Range 50 - 200 Meters 20kg Weight
    • 8 Frequencies High Power Signal Jammer Range 50 - 200 Meters 20kg Weight
    • 8 Frequencies High Power Signal Jammer Range 50 - 200 Meters 20kg Weight
    • 8 Frequencies High Power Signal Jammer Range 50 - 200 Meters 20kg Weight
    • 8 Frequencies High Power Signal Jammer Range 50 - 200 Meters 20kg Weight
  • 8 Frequencies High Power Signal Jammer Range 50 - 200 Meters 20kg Weight

    Product Details:

    Place of Origin: China
    Brand Name: DEZHEN
    Certification: ROHS/FCC/ISO 9000
    Model Number: DZ-808H-8-50W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after received your payment
    Payment Terms: T/T
    Supply Ability: 100 pcs per month
    Contact Now
    Detailed Product Description
    Material: Metal Output Power: 47dBm Per Band Or 50 DBb Per Band
    Jamming Range: 50-300meters Weight: 20kg

    8 Frequencies Wireless Signal Jammer Radius Range 50-200 Meters


    Description:

    1.  Equipped with special high gain directional planar antenna or fiberglass omni-directional whip antenna, the jammer can effective block  CDMA/GSM/DCS /3G/ LTE/WIMAX .
     2. 50 watts per band, total RF power 250 watts, also with power adjustable switches to
    control the radius range. .also each band we can design as 15watts or 100watt as your requirement.
    3. It is suitable for prisons, detention houses, military bases, large oil fields and all other outdoor places where need the signal to block.
    4.Good cooling system via fans design.
    4.one jammer can jam up to 8  frequency bands simultaneously.
    5.Secure design to avoid sabotage.
    6. only to block the downlink frequency bands , not to the uplink


    Specifications:

    Output interface

    Shield band of frequency

    RF output power

    Output power/channel

    CDMA

    851 - 894 MHz

    47dBm

    21dBm/30KHz(min)

    GSM

    925 -960MHz

    47dBm

    23dBm/30KHz(min)

    DCS

    1805 - 1920 MHz

    47dBm

    23dBm/30KHz(min)

    3G

    2110 - 2170 MHz

    47dBm

    23dBm/30KHz(min)

    WIMAX

    2300 - 2390 MHZ

    47dBm

    21dBm/30KHz(min)

    LTE

    2620-2690 MHZ

    47dBm

    24dBm/30KHz(min)

    GPS1570-1580 MHZ47dBm

    21dBm/30KHz(min)

    LTE720-770MHZ47dBm

    22dBm/30KHz(min)

    WIFI2400-2485MHZ47dBm

    22dBm/30KHz(min)

    Power supply: AC220V   Shielding area: 50-300M @ according to signal density of mobile network

    Power consumption: 950W  Weight:20 Kg  Size(length × wind × high):480×350×180mm

    Humidity: 30%-95%                   Running Temperature: -20 to +55 Celsius Degree

























    Competitive Advantage:


    1. with good cooling system, can operate for long time.
    2. Using digital interference technology, overall effective suppression of target spectrum.
    3. independent module design. Each module can separate switch,disassemble. So it is convenient for    maintenance and update.
    4. Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
    5. Continuous operation, even in hot climates, with no time limit.

    Applications:

    1. prison
    2. Military camp
    3. detention houses
    4. oil fields.
    5. Museums
    6. Drug Enforcement
    7. Secret Services
