|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Packed in carton firstly, and then reinforced with wooden case for outer packing|
|Delivery Time:||15 working days after received your payment|
|Supply Ability:||100 pcs per month|
|Jamming Range:||50-200m||Total Output Powe:||200watts|
high power mobile phone jammer,
high power phone jammer

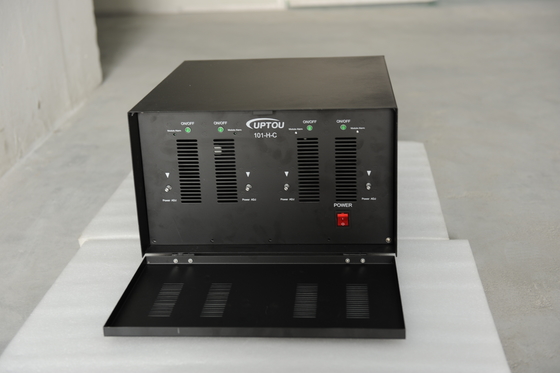

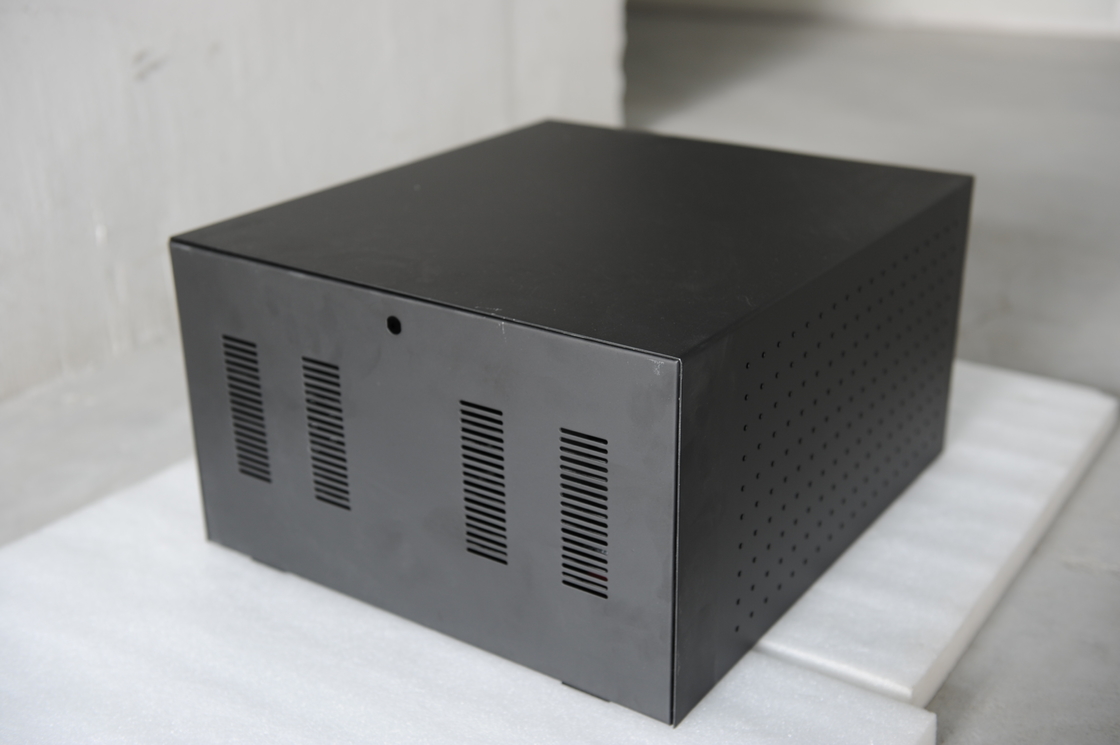

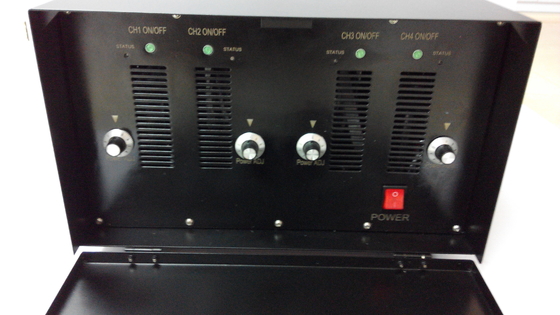

4 Bands, 200w High Power signal Jammer / Shield / blocker,for prison,military
Equipped with special high gain directional planar antenna or fiberglass omni-directional whip antenna, the jammer can effective block CDMA/GSM/DCS /3G/ LTE/WIMAX .
Use the overseas advanced chip and technology . With independent modular design, it keeps high operation efficiency, and avoid mutual interference.
100 watts per band, total RF power 600 watts, also with power adjustable switches to control the radius range. It is suitable for prisons, detention houses, military bases, large oil fields and all other outdoor places where need the signal to block.
|Channel||Output interface||Frequency Range||Band Width||Output Power||Channel Output Power|
|CH1||DCS 1800||1805-1880 MHz||75 MHz||46.5 dBm||20 dBm/30KHz(min)|
|CH2||GSM 900||925-960 MHz||35 MHz||46.5 dBm||23 dBm/30KHz(min)|
|CH3||CDMA 800||850-894 MHz||44 MHz||46 dBm||24 dBm/30KHz(min)|
|CH4||PCS 1900||1925-1990 MHz||65 MHz||46dBm||20 dBm/30KHz(min)|
|Power Supply: AC220V Shielding area: 100-500M @ according to signal density mobile|
|Power consumption: 600W Weight: 28Kg Side(length× wide× high): 450× 405× 255 mm
Note: Frequency and power can be customized.
1.with good cooling system, can operate for long time.
2.Using digital interference technology, overall effective suppression of target spectrum.
3.independent module design. Each module can separate switch,disassemble. So it is convenient for maintenance and update.
4. Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
1. To protect the the owner's benefits by cutting off the mobile phone signal
2 .For the needs of the army and military
3. For the guard place, prison use
4. For big party concourse
5 .For the leaders security use
Contact Person: Ronin
