Place of Origin: | China |
Brand Name: | DEZHEN |
Certification: | ROHS/FCC/ISO 9000 |
Model Number: | DZ-808R-1000W |
Minimum Order Quantity: | 1 PCS |
---|---|
Packaging Details: | Packed in carton firstly, and then reinforced with wooden case for outer packing |
Payment Terms: | T/T |
Supply Ability: | 100 pcs per month |
High Light: | high power phone jammer,signal jamming device |
---|
20-500MHZ, DDS High power signal jammer for military ,waterproof case
Description:

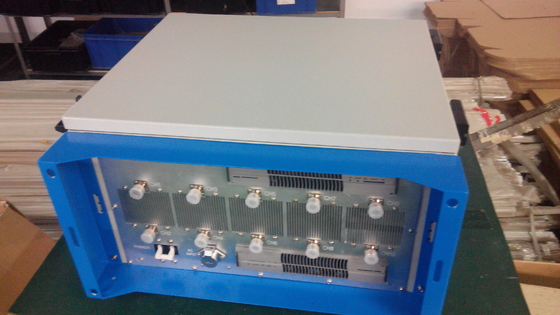

This jammer is a waterproof model.
Using high quality waterproof case, ensure stability of the equipment ,even work in bad weather condition.
Equipped with special high gain directional planar antenna or fiberglass omnidirectional whip antenna, the jammer can effective block CDMA/GSM/DCS /3G/ LTE/WIMAX .
Use the overseas advanced chip and technology . With independent modular design, it keeps high operation efficiency, and avoid mutual interference.
100 watts per band, total RF power 1000 watts, also with power adjustable switches to control the radius range. It is suitable for prisons, detention houses, military bases, large oil fields and all other outdoor places where need the signal to block.
Specifications:

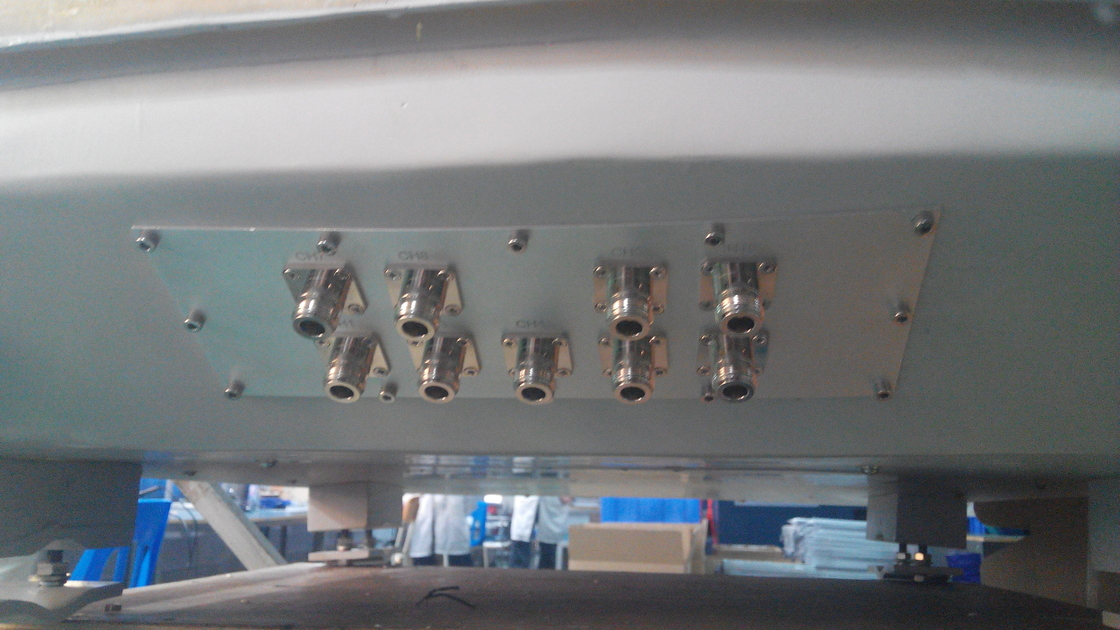

Output interface |
Shield band of frequency |
RF output power |
Output power/channel |
CH1 |
725-770 MHz |
50.2dBm |
23.1 dBm/30KHz(min) |
CH2 |
2620-2690MHz |
48.4 dBm |
20.4 dBm/30KHz(min) |
CH3 |
851-894 MHz |
50.3 dBm |
23.0dBm/30KHz(min) |
CH4 |
1805-1880 MHz |
48.7dBm |
18.2 dBm/30KHz(min) |
CH5 |
1930-1990 MHz |
49.9 dBm |
21.6 dBm/30KHz(min) |
CH6 |
2110-2170MHZ |
48.2 dBm |
21.9 dBm/30KHz(min) |
CH7 |
450-470 MHz |
50.1dBm |
21.9 dBm/30KHz(min) |
CH8 |
925-960 MHz |
49.4dBm |
21.3 dBm/30KHz(min) |
CH9 |
2400-2483 MHz |
48.0dBm |
20.5 dBm/30KHz(min) |
CH10 |
20-500 MHz |
47.9dBm |
17.3dBm/30KHz(min) |
Power supply: AC220V Shielding area:100-300M @ according to signal density of mobile network |
|||
Power consumption:2700W Weight:37.8Kg Size(length × wind × high):500×500×370mm |
|||
Humidity: 30%-95% Running Temperature: -20 to +55 Celsius Degree |
Competitive Advantage:
1. Using high quality waterproof case, ensure stability of the equipment even work in bad weather
conditions.
2.with good cooling system, can operate for long time.
3.Using digital interference technology, overall effective suppression of target spectrum.
4.independent module design. Each module can separate switch,disassemble. So it is convenient for
maintenance and update.
5. Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
Applications:
