High Power 1000w DDS Mobile Phone Signal Jammer 20MHZ - 500MHZ

High Power 1000w DDS Mobile Phone Signal Jammer 20MHZ - 500MHZ

    • High Power 1000w DDS Mobile Phone Signal Jammer 20MHZ - 500MHZ
    • High Power 1000w DDS Mobile Phone Signal Jammer 20MHZ - 500MHZ
    • High Power 1000w DDS Mobile Phone Signal Jammer 20MHZ - 500MHZ
    • High Power 1000w DDS Mobile Phone Signal Jammer 20MHZ - 500MHZ
  • High Power 1000w DDS Mobile Phone Signal Jammer 20MHZ - 500MHZ

    Product Details:

    Place of Origin: China
    Brand Name: DEZHEN
    Certification: ROHS/FCC/ISO 9000
    Model Number: DZ-808R-1000W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Payment Terms: T/T
    Supply Ability: 100 pcs per month
    Contact Now
    Detailed Product Description
    Material: Metal RF Output Power: 1000w
    Jamming Range: 50-300meters Power Supply: 220V AC Or Battery 24V DC

    10 frequencies ,high power waterproof mobile phone signal   jammer ,DDS for 20-500MHZ



    Description:

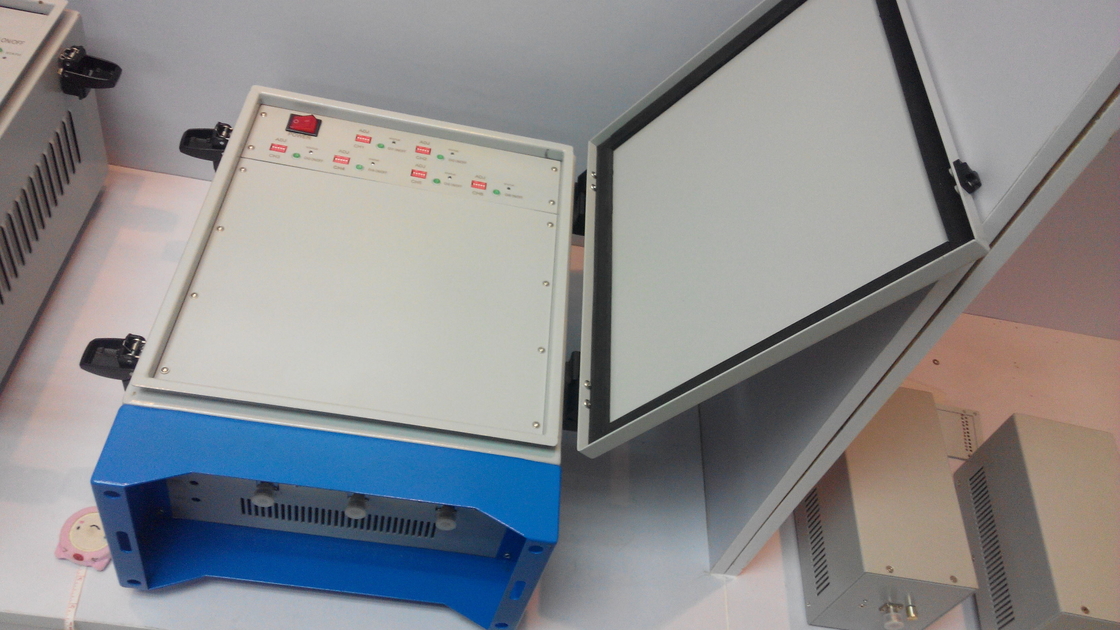

    This jammer is a waterproof model.

    Using high quality waterproof case, ensure stability of the equipment ,even work in bad weather condition.



    Equipped with special high gain directional planar antenna or fiberglass omnidirectional whip antenna, the jammer can effective block  CDMA/GSM/DCS /3G/ LTE/WIMAX .



    Use the overseas advanced chip and technology . With independent modular design, it keeps high operation efficiency, and avoid mutual interference.



    100 watts per band, total RF power 1000 watts, also with power adjustable switches to control the radius range. It is suitable for prisons, detention houses, military bases, large oil fields and all other outdoor places where need the signal to block.



    Specifications:

    Output interface

    Shield band of frequency

    RF output power

    Output power/channel

    CH1

    725-770 MHz

    50.2dBm

    23.1 dBm/30KHz(min)

    CH2

    2620-2690MHz

    48.4 dBm

    20.4 dBm/30KHz(min)

    CH3

    851-894 MHz

    50.3 dBm

    23.0dBm/30KHz(min)

    CH4

    1805-1880 MHz

    48.7dBm

    18.2 dBm/30KHz(min)

    CH5

    1930-1990 MHz

    49.9 dBm

    21.6 dBm/30KHz(min)

    CH6

    2110-2170MHZ

    48.2 dBm

    21.9 dBm/30KHz(min)

    CH7

    450-470 MHz

    50.1dBm

    21.9 dBm/30KHz(min)

    CH8

    925-960 MHz

    49.4dBm

    21.3 dBm/30KHz(min)

    CH9

    2400-2483 MHz

    48.0dBm

    20.5 dBm/30KHz(min)

    CH10

    20-500 MHz

    47.9dBm

    17.3dBm/30KHz(min)

    Power supply: AC220V Shielding area:100-300M @ according to signal density of mobile network

    Power consumption:2700W  Weight:37.8Kg  Size(length × wind × high):500×500×370mm

    Humidity: 30%-95%                   Running Temperature: -20 to +55 Celsius Degree









    Competitive Advantage:



    1.  Using high quality waterproof case, ensure stability of the equipment  even work in bad weather

    conditions.

    2.with good cooling system, can operate for long time.

      3.Using digital interference technology, overall effective suppression of target spectrum.

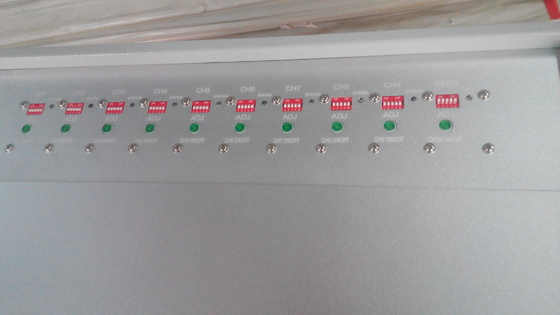

      4.independent module design. Each module can separate switch,disassemble. So it is convenient for maintenance and update.



    5. Perfect Alarm System, fully protected circuit in case of disconnection of antennas.



    Applications:

    1.  prison
    2.  Military camp
    3.  detention houses
    4.  oil fields.
    5.  Museums
    6.  Drug Enforcement
    7.  Secret Services
