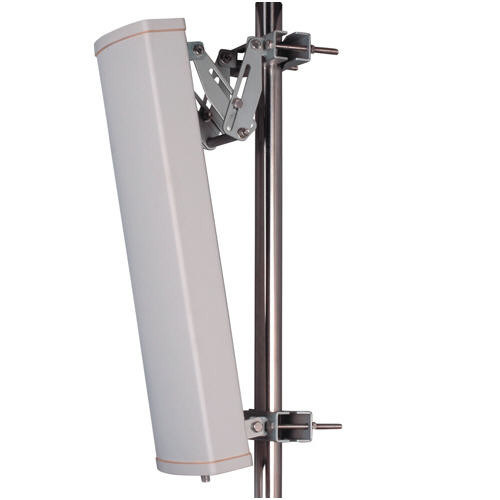

GSM900/3G2 Signal Jammer Accessories Directional Panel Antenna Sector Antenna100

GSM900/3G2 Signal Jammer Accessories Directional Panel Antenna Sector Antenna100

    • GSM900/3G2 Signal Jammer Accessories Directional Panel Antenna Sector Antenna100
    • GSM900/3G2 Signal Jammer Accessories Directional Panel Antenna Sector Antenna100
    • GSM900/3G2 Signal Jammer Accessories Directional Panel Antenna Sector Antenna100
    • GSM900/3G2 Signal Jammer Accessories Directional Panel Antenna Sector Antenna100
  • GSM900/3G2 Signal Jammer Accessories Directional Panel Antenna Sector Antenna100

    Product Details:

    Place of Origin: CHINA
    Brand Name: DEZHEN
    Certification: CE
    Model Number: DZ002921

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: sales@dezhen.net
    Packaging Details: box
    Delivery Time: 2-3day
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 1000
    Contact Now
    Detailed Product Description


    Product Feature:
    1. Wide band, high gain and Low VSWR.
    2. High quality Aluminum Alloy material.
    3. Good Environmental Adaptability.
    4. With the Cable leads.
    5. Can be horizontal or Vertical installation
    Applications:
    1. Mobile Communication Network Optimization and Indoor distribution system
    2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio
    Electric Spec.
    Frequency rang-MHz 800-960/1800-2170MHZ
    Bandwidth -MHz 160/190
    Gain -dBi 9-12dbm
    beam width -° H:90-120 V:30
    -dB ≥50dB
    VSWR ≤1.5
    Input Impedance-Ω 50Ω
    Polarization Horizontal or Vertical
    Max power -W 100W
    Lightning protection DC ground
    Connector model NK female or others
    Mechanical Specification
    Size -mm 1250x 300 x 120 mm
    Cable length-m 1
    Antenna weight-kg 12.50kg
    Working Temperature -°c -40~60
    Rated Wind Velocity-m/s 60
    Clamp U type
