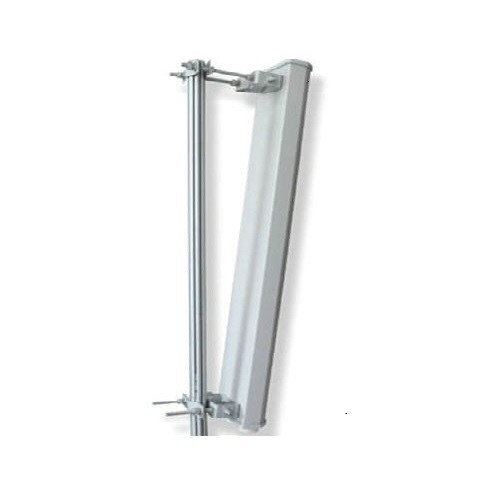

100W Outdoor Directional Panel Antenna Sector Antenna GSM1800 GSM1900 3G2100Mhz 2400-2600MHz

100W Outdoor Directional Panel Antenna Sector Antenna GSM1800 GSM1900 3G2100Mhz 2400-2600MHz

100W Outdoor Directional Panel Antenna Sector Antenna GSM1800 GSM1900 3G2100Mhz 2400-2600MHz

Product Details:

Place of Origin: CHINA
Brand Name: DEZHEN
Certification: CE
Model Number: DZ002021

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: sales@dezhen.net
Packaging Details: box
Delivery Time: 2-3day
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000
Contact Now
Detailed Product Description

100W Outdoor Directional Panel Antenna Sector Antenna GSM1800 GSM1900 3G2100Mhz 2400-2600MHz

Product Feature:

1. Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation
Applications:
1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio

Electric Spec.
Frequency rang-MHz 2400-2600MHZ
Bandwidth -MHz 200
Gain -dBi 9-12dbm
beam width -° H:90-120 V:30
-dB ≥50dB
VSWR ≤1.5
Input Impedance-Ω 50Ω
Polarization Horizontal or Vertical
Max power -W 100W
Lightning protection DC ground
Connector model NK female or others
Mechanical Specification
Size -mm 1250x 300 x 120 mm
Cable length-m 1
Antenna weight-kg 12.50kg
Working Temperature -°c -40~60
Rated Wind Velocity-m/s 60
Clamp U type





100W Outdoor Directional Panel Antenna Sector Antenna GSM1800 GSM1900 3G2100Mhz 2400-2600MHz
